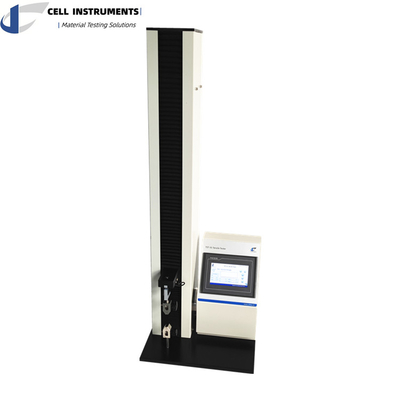

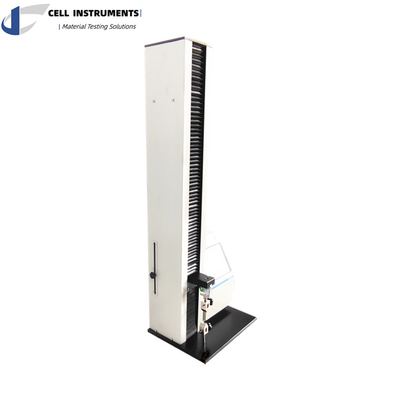

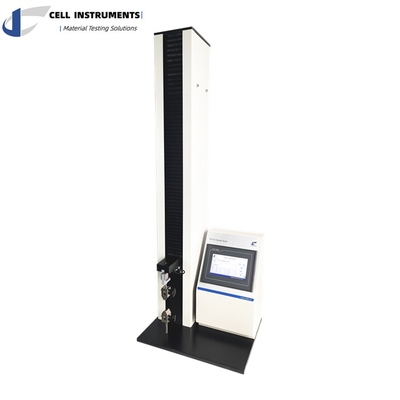

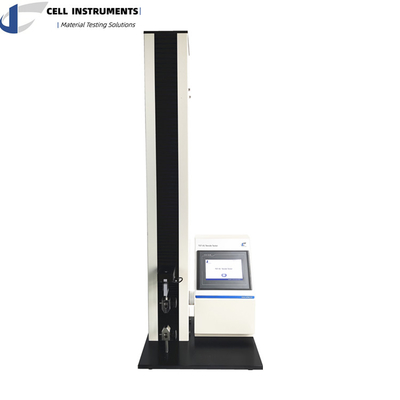

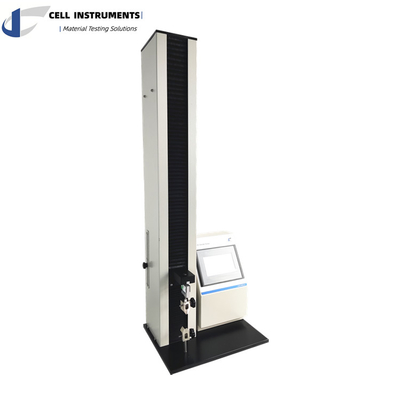

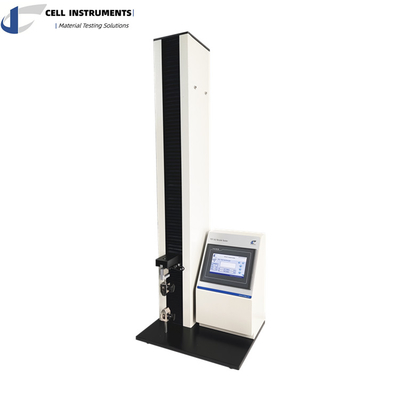

ASTM D5034 Breaking Strength And Elongation Testing Machine For Textile Fabrics Grab Test method tensile tester

The Breaking Strength And Elongation Testing Machine is an essential instrument for accurately measuring the tensile strength and elongation properties of various materials, particularly in industries like packaging, textiles, food, and pharmaceuticals. This high-precision machine plays a crucial role in assessing the mechanical properties of materials such as flexible laminates, fabrics, films, and other polymer-based materials.

Why Use a Breaking Strength And Elongation Testing Machine?

In material testing, especially when it comes to flexible laminates and textiles, understanding both the breaking strength and elongation is crucial for determining the material’s durability, flexibility, and potential for long-term performance. The Breaking Strength And Elongation Testing Machine provides critical data on how a material behaves under tension and how it performs when subjected to stress, offering valuable insights for quality assurance, product development, and compliance with industry standards.

Core Benefits of the Breaking Strength And Elongation Testing Machine

1. Comprehensive Testing for Diverse Materials: The Breaking Strength And Elongation Testing Machine is designed to evaluate a wide range of materials, ensuring they meet stringent standards for breaking strength, elongation, seal strength, and more.

2. Enhanced Material Durability Assessment: By accurately measuring the force required to break a material and its ability to stretch before rupture, this testing machine provides detailed information on the material's resilience and performance, which is essential for industries requiring reliable, high-performance materials.

3. Precision and Accuracy: The machine is equipped with a precision ball lead screw mechanism that guarantees consistent speed and displacement control. This allows for highly accurate results in all types of tensile and elongation tests.

4. User-Friendly Interface: The Breaking Strength And Elongation Testing Machine comes with a 7-inch TFT touch screen, offering intuitive, easy-to-understand controls. PLC control ensures seamless operation and data management.

Key Features of the Breaking Strength And Elongation Testing Machine

• PLC and HMI Control: Industrial-grade stability is provided through PLC control and a user-friendly HMI touch screen, offering superior ease of operation.
• Versatile Test Capabilities: The machine supports a variety of tests including break strength, tension, elongation, seal strength, and peel tests (90° and 180°).
• Precision Control: Equipped with a precision ball lead screw for stable and accurate speed and displacement control.
• Customizable Parameters: With adjustable test speeds (ranging from 1 to 500 mm/min), this machine can be tailored to suit a wide range of testing needs.
• Advanced Data Output: The machine supports optional RS232 data communication and a microprinter for detailed reporting and analysis.

Main Parameters

Related Standards

Several standards outline the testing procedures for flexible laminate. Some of the key standards include:

1. ASTM D3330——Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape.
2. ASTM D3759——Standard Test Method for Tensile Strength and Elongation of Pressure-Sensitive Tapes.
3. ISO 527——Plastics - Determination of Tensile Properties
4. ASTM F904——Standard Test Method for Comparison of Bond Strength or Ply Adhesion of Similar Laminates Made from Flexible Materials

Conclusion

Industry Applications and Standards Compliance

The Breaking Strength And Elongation Testing Machine is designed to meet the demands of various industries, including packaging, textiles, food, and pharmaceuticals. The machine is compliant with several relevant industry standards, such as:

• ASTM D5034: Standard Test Method for Breaking Strength and Elongation of Textile Fabrics.
• ASTM D3759: Standard Test Method for Tensile Strength and Elongation of Pressure-Sensitive Tapes.
• ISO 527: Plastics - Determination of Tensile Properties.
• ASTM F904: Standard Test Method for Comparison of Bond Strength or Ply Adhesion of Similar Laminates Made from Flexible Materials.

These standards ensure that materials undergo rigorous testing for compliance with quality and performance benchmarks, essential for ensuring material integrity in various industrial applications.

Conclusion: Essential Tool for Material Testing

The Breaking Strength And Elongation Testing Machine is a critical piece of equipment for industries requiring precision testing of material durability, strength, and elongation properties. With its wide test range, customizable parameters, and compliance with international standards, this testing machine is the ideal solution for manufacturers and quality control laboratories aiming to maintain product quality and optimize performance.

For further inquiries about the Breaking Strength And Elongation Testing Machine, or to request a customized testing solution, contact us today!
