Impact Tester By Ball Drop For Plastic Thin Sheet Impact Resistance Testing Equipment Flexible Packaging Drop Testing

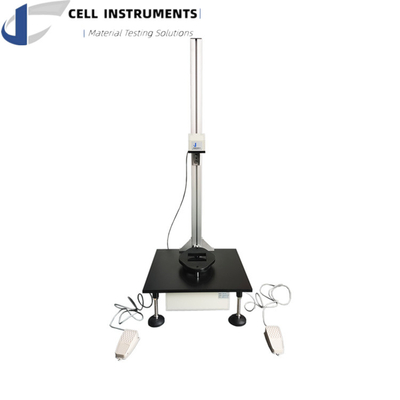

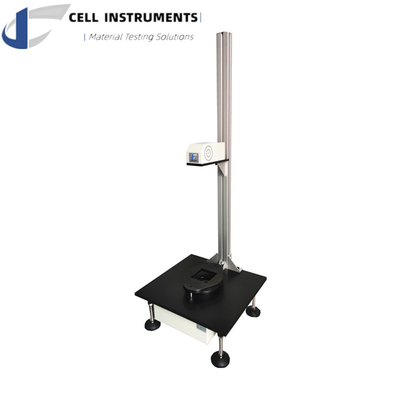

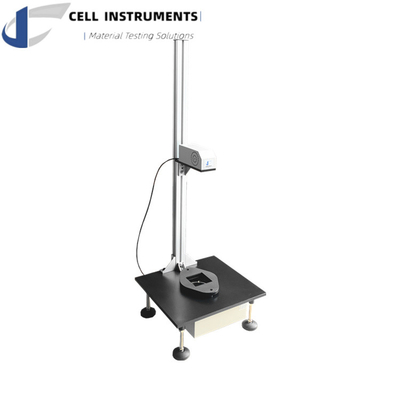

Introduction to the Ball Drop For Plastic Thin Sheet Impact Tester (FBT-01)

The Ball Drop For Plastic Thin Sheet Impact Tester (FBT-01), developed by Cell Instruments, is a state-of-the-art testing instrument designed for evaluating the impact resistance and puncture resistance of various materials such as plastic sheets and films. This specialized equipment is essential for quality control, research, and development across multiple industries. With its precise design and intuitive operation, the Ball Drop For Plastic Thin Sheet impact tester provides manufacturers and laboratories with the ability to assess material durability under controlled impact conditions, ensuring higher product standards and reliability.

Technical Features of Ball Drop For Plastic Thin Sheet Impact Tester

The FBT-01 Falling Ball Impact Tester is engineered with advanced features that enhance its efficiency, reliability, and user experience. Here are the key technical aspects:

1. Precision PLC Control and Interactive Touch Screen Interface:

   • Ensures stable and accurate testing through industrial-grade PLC control.
   • The intuitive HMI touch screen interface facilitates easy operation and seamless data management.

2. Adjustable Impact Height and Multiple Steel Ball Sizes:

   • The impact height can be adjusted between 300mm and 600mm, simulating various real-world impact scenarios.
   • Comes with a variety of steel ball options (diameters: 23mm, 25mm, 28.6mm, 38.1mm, and 50.8mm) to cater to different testing needs and standards.

3. Electromagnetic Suspension System for Automatic Ball Release:

   • Features an electromagnetic suspension system for precise and consistent automatic ball release.

4. Secure Pneumatic Specimen Clamping:

   • Equipped with pneumatic clamps for secure, stable sample positioning during tests, ensuring accurate results.

5. Versatile Display of Test Results:

   • Test results can be displayed in multiple units, enhancing user interpretation and flexibility.

6. Manual and Foot Switch Operation:

   • Offers dual operation modes—manual and foot switch—catering to user preferences and different testing scenarios.

7. Integrated Dot Matrix Micro-Printer:

   • Includes a built-in dot matrix micro-printer for quick documentation of test results, promoting easy record-keeping and traceability.

8. Optional Advanced Professional Software:

   • The FBT-01 can be upgraded with advanced software that provides in-depth analysis, enhanced reporting capabilities, and comprehensive data management.

Why Use the Ball Drop For Plastic Thin Sheet Impact Tester?

The Ball Drop For Plastic Thin Sheet Impact Tester (FBT-01) is designed to address the critical need for testing the impact resistance of materials. Whether in research facilities, quality control labs, or production environments, the FBT-01 is invaluable for several reasons:

• Ensures Quality Control: By accurately measuring the material's ability to withstand impact and puncture, manufacturers can ensure product consistency and quality.
• Supports R&D Efforts: Helps researchers develop and refine materials that meet higher standards of durability.
• Adherence to Industry Standards: Provides accurate impact resistance data necessary for compliance with various industry norms.
• Customizable Testing: With adjustable impact heights and various ball sizes, the tester accommodates diverse testing scenarios and material types.
• User-Friendly and Efficient: The device is easy to operate, delivering quick and reliable results that facilitate productivity.

Purpose of the Ball Drop For Plastic Thin Sheet Impact Tester

The primary function of the Ball Drop For Plastic Thin Sheet Impact Tester is to assess the impact resistance and puncture resistance of films, plastic sheets, plates, composites, foils, and paper materials with a thickness of less than 2mm. By releasing a steel ball from a controlled height onto the material sample, the FBT-01 determines how well the material resists external force and prevents failure modes such as rupture, cracking, or deformation. This type of testing is crucial for applications where materials undergo frequent and sudden impacts.

Applications of the Ball Drop For Plastic Thin Sheet Impact Tester

The versatility of the Ball Drop For Plastic Thin Sheet Impact Tester makes it a valuable asset across various sectors:

• Plastics Industry: To evaluate the impact resistance of plastic films and sheets.
• Packaging Industry: To ensure that packaging materials can withstand potential impacts during handling and transportation.
• Textile Industry: For testing the durability of textile materials under sudden impact conditions.
• Food Industry: To verify the robustness of packaging used for food products.
• Pharmaceutical Industry: To test the impact resistance of pharmaceutical packaging to maintain the integrity of medical products.
• Printing Industry: For assessing the durability of printed materials and substrates.
• Adhesives Industry: To determine the strength and resilience of adhesive materials.

Technical Specifications of the Ball Drop For Plastic Thin Sheet Impact Tester

Conclusion

The Ball Drop For Plastic Thin Sheet Impact Tester (FBT-01) by Cell Instruments represents an essential tool for assessing the impact resistance and durability of a variety of materials. Its precise, customizable, and user-friendly design makes it a crucial addition to any laboratory or production facility that values quality assurance and compliance with industry standards. From plastics and packaging to textiles and adhesives, the FBT-01 ensures reliable and consistent performance to enhance material development and testing processes.
