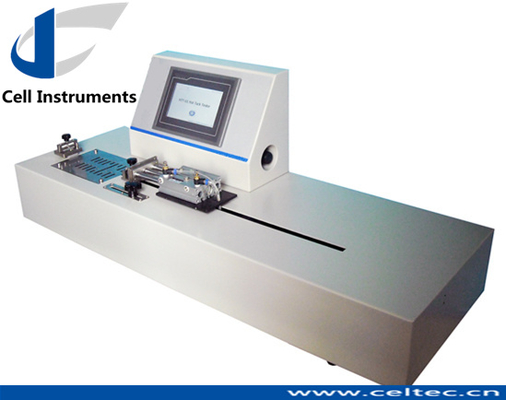

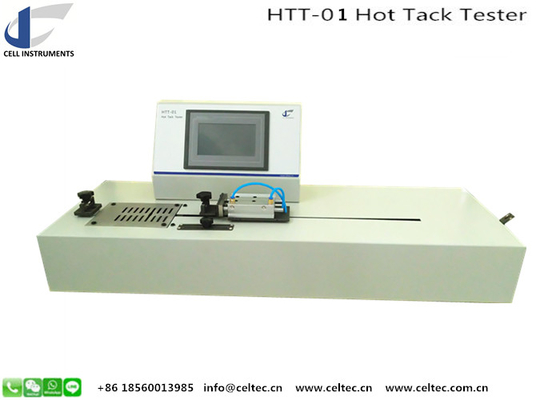

Hot Tack Seal Tester Astm F1921 Astm F2029 Polymer Lab Quality Control Equipment Tensile And Peeling Force Tester

Introducing the Hot Tack Seal Tester, an advanced piece of laboratory equipment designed to measure the strength of heat seals formed between thermoplastic surfaces. This tester is essential for industries such as packaging, food, pharmaceuticals, and beverages, where maintaining the integrity of heat-sealed packaging is crucial for product quality and safety. The Hot Tack Seal Tester follows recognized industry standards, including ASTM F1921 and ASTM F2029, ensuring that seals are tested immediately after formation, before they cool to room temperature.

Whether you need to evaluate the effectiveness of your packaging seals in vertical form-fill-seal (VFFS) applications or conduct routine quality control, the Hot Tack Seal Tester provides precise, reliable results to ensure that your packaging performs as expected under real-world conditions.

Key Features of the Hot Tack Seal Tester

1. Multi-Function Testing: The Hot Tack Seal Tester integrates four major testing functions into one compact instrument: hot tack testing, heat sealing, peeling force measurement, and tensile testing. This makes it an invaluable tool for businesses that need comprehensive data on their packaging materials.

2. P.I.D. Temperature Control: The sealing jaws are regulated by P.I.D. (Proportional-Integral-Derivative) temperature control, allowing the instrument to quickly heat to the desired temperature and maintain stability during testing. This ensures accurate and repeatable results, critical for product consistency and compliance with industry standards.

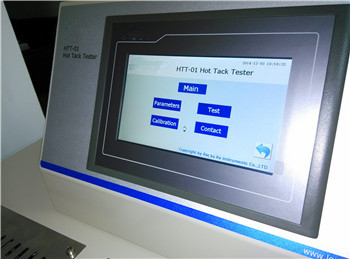

3. User-Friendly Interface: The Hot Tack Seal Tester is equipped with a 7-inch TFT touchscreen display, offering intuitive and simple operation. This large, easy-to-read display improves user interaction and minimizes the learning curve, making it suitable for operators of all experience levels.

4. PLC Control: The device is powered by a Programmable Logic Controller (PLC), ensuring precise control over testing parameters and optimal performance throughout testing procedures. This feature guarantees reliable, consistent results across various materials and testing conditions.

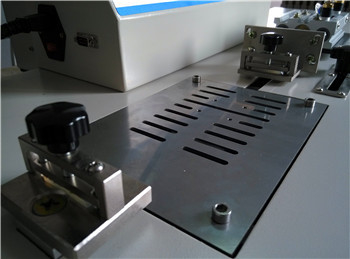

5. Even Heating with Aluminum Encapsulated Sealing Jaws: The sealing jaws are encapsulated in aluminum, providing even heat distribution and minimizing any inconsistencies in seal strength due to temperature variation. This feature is especially important for maintaining the quality and uniformity of heat seals.

6. Adjustable Testing Speed: Testing speed is fully customizable, allowing users to modify settings based on material characteristics or specific testing requirements. This adaptability enhances the versatility of the Hot Tack Seal Tester, making it suitable for various materials and packaging formats.

7. Multi-Group Parameter Saving: The tester allows users to save multiple groups of testing parameters, streamlining repetitive testing processes and saving time for laboratories and quality control departments. This functionality is particularly beneficial for facilities testing multiple materials or products.

8. Safety Features: The Hot Tack Seal Tester is equipped with auto-zeroing, overload protection, and over-travel protection mechanisms. These safety features safeguard both the operator and the equipment, ensuring a secure and reliable testing environment.

9. RS 232 Port and Optional Software Integration: For enhanced data management and analysis, the tester includes an RS 232 port for connecting to professional software (optional). This feature enables users to export data, generate detailed reports, and monitor trends, providing valuable insights into material performance.

10. Manual and Foot Switch Test Initiation: The Hot Tack Seal Tester offers the flexibility of starting tests either manually or via a foot switch. This feature, combined with the anti-scald design of the instrument, ensures ease of use and added operator safety during high-volume testing operations.

Applications of the Hot Tack Seal Tester

The Hot Tack Seal Tester plays a vital role in a range of industries, including:

• Food and Beverage Packaging: For ensuring the strength and integrity of seals in pouches, bags, and other flexible packaging materials used in the packaging of food and beverages.
• Pharmaceuticals: Essential for testing the packaging materials used for pharmaceutical products, ensuring the seals are strong enough to maintain sterility and containment.
• Cosmetics: Used to test the strength of seals on packaging materials for beauty and personal care products.
• Industrial Packaging: Ensures that the packaging materials used in industrial applications, such as chemicals and hardware, can withstand stress during shipping and handling.

How the Hot Tack Seal Tester Works

The Hot Tack Seal Tester measures the adhesive strength of heat seals immediately after they are formed, using heated jaws to apply controlled pressure to the thermoplastic materials being tested. The machine then measures the force required to separate the heat seal while it is still hot, simulating the real-world conditions that occur in vertical form-fill-seal (VFFS) packaging processes.

By replicating the conditions under which packaging seals are formed in production environments, the Hot Tack Seal Tester allows manufacturers to ensure their materials meet the necessary performance standards before they reach the consumer. This level of quality control is critical for maintaining product integrity, avoiding product recalls, and ensuring customer satisfaction.

Industry Standards and Compliance

The Hot Tack Seal Tester complies with the following industry standards:

• ASTM F1921: Standard Test Method for Hot Tack of Thermoplastic Polymers Using Heated Jaws.
• ASTM F2029: Standard Practices for Making Heat Seals for Determination of Heat Sealability of Flexible Webs.
• QB/T 2358: Chinese standard for testing heat seal strength in flexible packaging materials.
• YBB 00122003: A pharmaceutical packaging standard that specifies the requirements for heat seal performance in the medical industry.

Compliance with these standards ensures that the Hot Tack Seal Tester delivers accurate, reliable test results that meet industry expectations for packaging performance and quality.

Benefits of Using the Hot Tack Seal Tester

• Enhanced Product Safety: The ability to test heat seals immediately after formation ensures that seals are strong enough to maintain the integrity of the packaging, protecting the product from contamination, leakage, and damage during transportation.
• Improved Manufacturing Efficiency: By identifying potential issues with heat seals early in the production process, manufacturers can address problems before they result in costly product recalls or damage to brand reputation.
• Versatility: The Hot Tack Seal Tester is capable of testing a wide range of materials, including polyethylene, polypropylene, polyester, and laminated films, making it a versatile solution for companies in various industries.
• Data-Driven Quality Control: With the ability to connect to optional software for data analysis, users can monitor trends and optimize packaging processes to improve product quality and consistency.

Industries That Benefit from the Hot Tack Seal Tester

The Hot Tack Seal Tester is a critical tool for any business that depends on the quality and reliability of heat-sealed packaging. Industries that benefit from this tester include:

• Packaging Manufacturers: Ensure that packaging materials meet the required standards for strength and durability.
• Food and Beverage Companies: Verify that packaging seals can withstand the rigors of transportation and handling, ensuring product safety and customer satisfaction.
• Pharmaceutical Manufacturers: Ensure that packaging materials used for medical products are strong enough to maintain sterility and prevent contamination.
• Research and Development Laboratories: Test new materials and packaging designs to ensure they meet industry standards for heat seal strength.

Conclusion

The Hot Tack Seal Tester is an essential instrument for businesses that rely on flexible packaging materials. Its ability to perform hot tack, heat seal, peeling, and tensile testing makes it a comprehensive solution for evaluating packaging performance and ensuring compliance with industry standards. Whether used in food, pharmaceutical, or industrial packaging, this tester delivers accurate, reliable results that help businesses maintain product quality and safety.
